VFR-1000 specifications

Motorised Valve Face Reconditioners

The NEWAY method incorporates tungsten carbide machining that virtually eliminates the high and low spots normal to surface grinding.

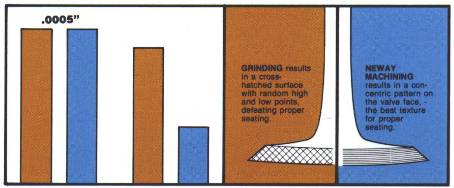

ACCURACY
COST
Brown -grinding
Blue - Neway
Machining provides a concentric pattern on the valve face,- the best texture for proper seating.
Accuracy:
 Concentricity within OEM specs.
Variable Rotation Speed:
 Up to 1300 RPM
Valve Size Range:
 1/2" to 2 1/2"
Variable Cutting Tool Feed:
Collet Size"
 0.157" (4mm) through
1/2" (13mm)
Cutting Bit:
 Carbide
Voltage:
 115 volt - 60 cycle with transformer
Space Required:
 14 1/4" W x 11 1/2" D

STANDARD EQUIPMENT ( Australia)
6 Collets 5.5, 6.5, 7, 8, 11/32",
9.5(3/8")		 1 Finishing Disc for butting valves (fits
3/8" Collet)
3 Carbide Tools Bits Illustrated Operating Instructions
High Intensity Work Light One Year Warranty
Positive Stops 0 deg, 30deg, 45 deg.

OPTIONAL AND REPLACEMENT EQUIPMENT
Optional Collet Sizes
Part No. Description Part No. Description
VFRC40 4.0mm VFRC105 10.5mm
VFRC60 6.0mm VFRC115 11.5mm
VFRC66 6.6mm VFRC120 12mm
VFRC932 9/32" VFRC125 12.5mm
VFRC85 8.5mm VFRC12 1/2"
VFRC90 9.0mm
Replacement Equipment
Part No. Description
VFR72 Carbide insert (std)
VFR74 Carbide (titanium/stainless)
VFR75 Carbide (diesal/veryhard valves)
VFR Bulb 25W R14 Bulb
